Tuesday, November 20, 2012

.Net Portable Subset & Portable Class Libraries

While developing portable class library projects, you might have seen the term portable subset at different places in Visual Studio. Ever wondered what that is? In this post, we are trying to explore this. Just to refresh, you can find an example in the assembly references section of your portable calss library project. If you look at its properties, you find that it is SDK file type. It has .Net Portable v4.0 identity and it refers to a path in the profiles folder.


If we look at the Profiles folder in assembly refernces, we realize that we can find two versions under .Net Portable. They are v4.0 and v4.5.


Basically both of these folders contain profiles. Most of them are contained by v4.0. There is only one profile in v4.5 folder. This is Profile 7.


As discussed in a previous post, we can easily determine the selection of target frameworks for a profile through the supported frameworks folder under profile. Profile7 should be selected for .net framework 4.5 and .net for Windows Store Apps platforms selection.


This profile is used when we target .Net framework 4.5 and .Net for Windows Store Apps. We can easily verify that by retargeting one of our portable class library projects to these versions.


After updating this, we can find that the profile is updated as follows:


So what is the Portable Subset?
Basically Object Browser can be used to see the list of assemblies for a framework or profile (including .net framework client profiles). With Portable Class Libraries, suddenly so many profiles are introduced that it might have seemed that the IDE would clutter up making the life difficult for the developers. This might have pushed the development team at Microsoft to call it sub-set instead. Basically this sub set includes the assemblies referenced in any combination of the target frameworks for the portable class library. So if you see an assembly there, you still might not be sure that it would be available by your selected framework combination. Remember the overlapping area concept we discussed in this post?


Actually this is the same issue when we look at msdn and find that the portable class library support icon with a method / property. Which profile exactly does this mean? We are on our own on this. The feature set chart that we discussed, might help.


These portable versions [v4.0 and v4.5] seem to be referred as .Net Portable subsets in Visual studio. Here v4.5 seems to be referred as .Net Portable Subset and v4.0 seems to appear as .Net Portable Subset (Legacy).

What's Legacy Portable Subset?
As we have seen there is only one frameworks combination that v4.5 provides. It is based on newer frameworks including .net framework 4.5 and .net for Windows Store Apps. Let's try to see what's cooking inside now. Let's try to see if there is a difference in the assemblies for legacy Vs newer profiles. Below is the profile of mscorlib as in Profile 24 for v4.0 Portable folder. As we have discussed in one of our previous post, this is a retargetable assembly.


Now let's look at the mscorlib as in the only profile [Profile 7] in v4.5. Amazingly this is not retargetable. So definitely, there is something cooking inside.


We might verify the same by looking at the other assemblies in a profile for Legacy and New .net portable versions. They all seem to follow the same i.e. all legacy profiles have retargetable assemblies and Profile7 in v4.5 has non-retargetable assemblies. The answer can be found in the reply of David Kean for this question in StackOverflow.

For new platforms (.NET 4.5, Windows Store, Phone 8), we took a step back and designed portability from the get go. Rather than attempt portability as an afterthought, we designed what we call contracts (basically assemblies) that represent a self-contained, unit of code that either a platform supports all of, or none of. This means that when you see "System.IO 4.0.0.0" on .NET Framework 4.5, it supports exactly the same APIs that you will see when you see it on Windows Phone 8. This makes portability very easy, rather than needing to generate custom assemblies to represent the intersection of a platform, we simply subset at the assembly boundary. For example, given a platform 1 that supports System.Runtime.dll, System.Reflection.dll and System.Reflection.Emit.dll and platform 2 that supports System.Runtime.dll and System.Reflection.dll. When you target these platforms in portable, we simply choose System.Runtime.dll and System.Reflection.dll. Long term this makes portability a lot easier to understand, as you can think in terms of assemblies instead of individual APIs.

Sunday, November 11, 2012

Assembly References For a Profile In a Portable Class Library Project

In this post we will be discussing one more common question people ask regarding Portable Class Library projects. This is about how to find out the list of assemblies referenced by the project. The question is raised because the references section is displayed as follows:


Object Browser
The first option is to use the Object Browser [View -> Object Browser]. Just select "My Solution". You might need to unload the other projects if you need to just see the assembly references caused by the portable class library project in the solution.

Class View

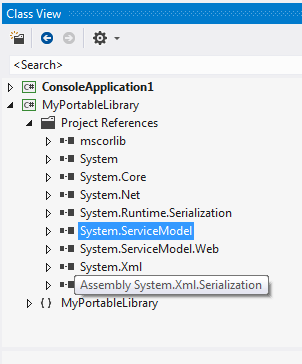

We can also see the referenced assemblies in the class explorer. This is also available in View Menu [View -> Class View].


Profile Folder
One of the option is to directly go to the folder for the specific profile and see the assemblies in the folder. The profile information can be found in the solution explorer as follows:


And here are the available assemblies for the profile.


Friday, November 9, 2012

Portable Class Library & Selected Profile

How can we determine the profile used by a portable class library project?

I have seen the question frequently thrown at me in some of my talks. This question is generally raised as soon as I explain how profiles are used by portable libraries. So I thought for the interest it would be beneficial for the Microsoft developer community if I create a separate post about this.

Profiles Info from Visual Studio 2012
Here we are using Visual Studio 2012 RC for this example. The release version should have the same behavior. Let's open the portable class library project, named MyPortableLibrary, created in the previous example in Visual Studio.


In order to see the selected profile for the project, let's open the solution explorer and expand References section. You should only see .Net Portable Subset if you haven't added any other assembly references manually. Right click .Net Portable Subset and select Properties. The Properties should be opened with the following display.


Here you can see that the project is targeted for Profile4. You can see the details of the profiles by following the profile path. In Visual Studio, you can also see the referenced assemblies for the target profile. Just open Object Browser window and select My Solution.


Profile Info outside Visual Studio
Is it possible to find out which profile the project is referencing on a non-developer machine? Generally, you wouldn't find Visual Studio installed on such machines. These profiles are standard profiles provided by Microsoft. Actually the profile info is part of project definition. You can open the project file [*.csproj for c# projects] in any text editor and find the profile info. Here we have opened the project file in Notepad.

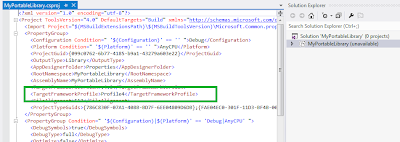

Obviously you can see the same in Visual Studio as well. Just unload the project in Solution Explorer and Edit Project file. You should be able to see this.


Profile Info from Assembly Manifest
Profile info is also available in assembly manifest. Just look for TargetFrameworkAttribute and you should be able to find the actual profile that the assembly is targeting. Here we have used the manifest from one of our previous posts.


Obviously we can check the profile of the running assembly:

The code results in the following output for one of my portable library:

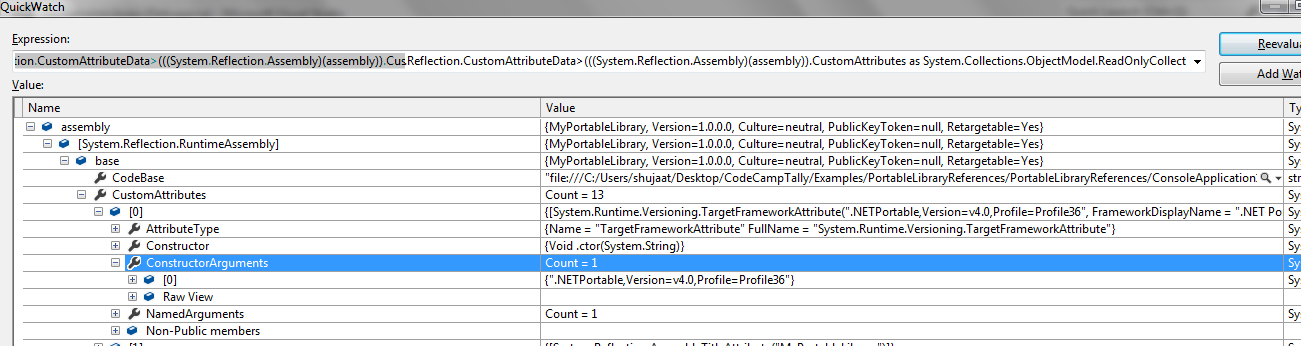

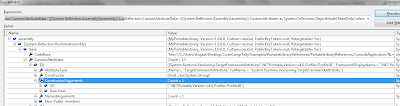

The same information is certainly available for a debug session as well:


Portable Vs Retargetable Assemblies

As we have been discussing that Portable Class Libraries allow us to target the same assembly for multiple platforms. Hence the name "portable" as they can be ported to the platforms and frameworks specified at design time. And as we have discussed before, that this sharing can be called Assembly Portability. Although you can create a portable library which is also retargetable but being portable is not the same as being retargetable. We can just use this manifest from one of our previous discussions about portable libraries. You can see that it is referencing a few retargetable libraries.

Are you wondering what actually is being retargetable? Basically portable Class Libraries is a recent introduction to developer's toolkit but retargetability has been there for a long time. As we have discussed in one of our previous posts that the assemblies in profile folder are just there for reference. They are to make sure that only certain features and types are used from them based on the automatic profile selection by the Visual Studio IDE. [The selected profile is part of the definition of portable class library project. You can easily find this in the project definition].

The actual runtime assemblies [e.g. System.dll] wouldn't be used from the profile. They would be used directly from the host framework. So if your portable library has Silverlight 4 as one of the target framework then it would be using the System assembly as provided by Silverlight 4 runtime. Portable Library Developers at Microsoft has made sure that there are no runtime surprises when your portable assembly is loaded by the host framework by only supporting the features provided by all of the selected target frameworks. That is exactly what Retargetability is. For an assembly, being retargetable means that the actual assembly will be used as provided at runtime. Let's see the manifest of a retargetable assembly [System.dll] from Profile1 using ILDASM.


Now you might be wondering if we can create a retargetable library. Actually you can do it. You can provide flags when you are developing your assembly. These flags are used from AssemblyNameFlags enumeration available in System.Reflection.

http://msdn.microsoft.com/en-us/library/system.reflection.assemblynameflags.aspx


The combination of these flags can be accessed through Flags property of your required assembly.

http://msdn.microsoft.com/en-us/library/system.reflection.assemblyname.flags.aspx

Just because you can do this, it doesn't necessarily mean you should. There doesn't seem to be any reason why we would be needing a custom retargetable library. This is from the documentation of the member of the enumeration from MSDN.

"Specifies that the assembly can be retargeted at runtime to an assembly from a different publisher. This value supports the .NET Framework infrastructure and is not intended to be used directly from your code."

This member is also available for your Portable Class Library project. Remember the special icon that shows the Portable Library support in msdn?


To see how this works, let's create a simple portable class library project, named MyPortableLibrary.


Let's build the project and see the manifest in ILDASM tool. This is definitely not a retargetable library.


Now let's add the flag in the assembly info file for the project as follows:


Now let's build the project again and see the updated manifest. You can notice that the assembly is now marked as retargetable.


Sunday, November 4, 2012

Code camp Tallahassee - Nov 3rd 2012

I had the amazing opportunity to speak at Tallahassee code camp this weekend [http://www.tallycodecamp.org/]. The event took place in Shores building in Florida State University.


I spoke about Portable Class Library Tools and MVVM.


Tallahassee is a beautiful small university town.






Like all codecamps, the event was followed by after party and prizes.


You can download the event's presentation here:
