Previously we have discussed about the following:
- An Introduction : http://www.shujaat.net/2012/07/multi-plaftorm-targeting-using-portable.html
- Portable Class Libraries & MVVM : http://www.shujaat.net/2012/08/portable-class-library-mvvm.html
- Portable Class Libraries & Features Support using Profiles : http://www.shujaat.net/2012/08/portable-library-tools-supported.html
- Portable Class Libraries & Type Forwarding : http://www.shujaat.net/2012/08/portable-library-tools-type-forwarding.html
Targeting additional Framework & Usage of Profiles
In order to determine how we would be supporting the framework in Portable Library Tools, we first need to determine the feature set supported by the target framework. We must also consider how those features are supported. During our type forwarding related discussion for portable libraries, we tried to ponder on why it is important to know how the features are provided and that is why MVVM types are not supported with portable class libraries for .net framework 4.0 as they are differently provided than rest of the platforms.

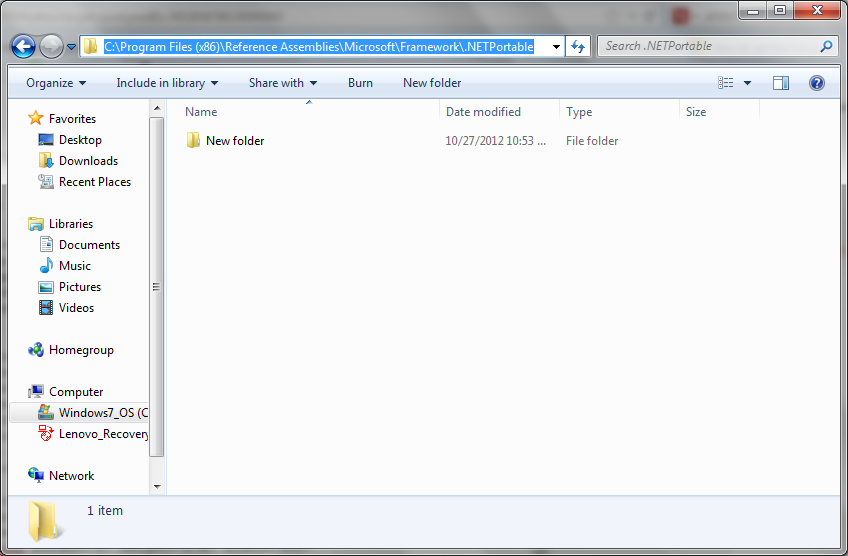

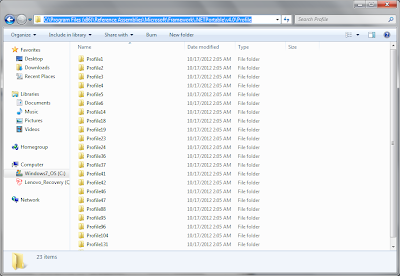

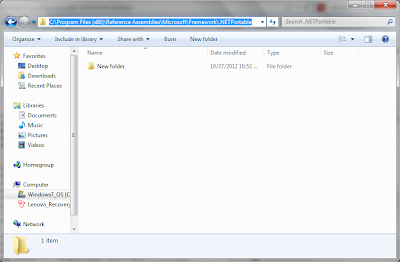

These profiles allow Visual Studio to provide framework lists for portable class library projects. Based on this idea, we should be able to add remove the frameworks and their versions by manipulating these profile folders. To get started, let's move all the profiles from the .NetPortable folder.
Now create a Portable Library Project and see the empty target framework lists. Now it should make sense how profiles affect the target frameworks list available for portable class library projects. I am using Visual Studio 2012 RC here.
Skeleton of a Profile
As sample profile folder for a portable class library project consists of some dlls & their xml for documentation of containing types, RedistList folder and SupportedFrameworks folder.
Here all the dlls are retargetable. This means that the portable library would use the versions of these dlls from the host framework. So if the portable library is being used in a Silverlight project then it would be using the Silverlight version of these assemblies. Similarly, if the same assembly is being used in a .net framework based project, it would be using the assembly provided by .net framework version. Let's look at the manifest of System.Core assembly in Profile1. You can also notice that the other assembly references are also from retargetable versions of these assemblies.

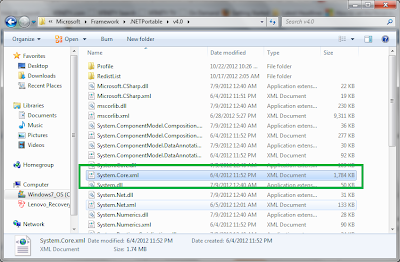

Al the profiles seem to share the code documentation. So the xml files contained in the profile folder is just for redirection to the main folder containing all the profiles.
This is just referring to this documentation xml file. This is super smart idea as the main folder would have the complete documentation and all the containing profiles would just be a subset of the main assembly.
Please remember to reload visual studio i.e. kill it and open it again for the changes in profiles to take effect.
Now we come to RedistList/FrameworkList. This is to describe the list of assemblies available for the target frameworks. For Profile1, the list is as follows:
From the xml file, I am sure that you can guess what assemblies would be looked for for the list of the target frameworks. The corresponding assemblies are looked for in the folder containing the Redist folder. There seems to be no exception if an expected assembly is not there in the folder. Also there doesn't seem to any issue if an unexpected assembly is found in the profile folder.
Now which part of profile is important to show frameworks and their versions in framework selection dialog for portable class library project. This is the SupportedFrameworks folder. You will find a list of xml files in the folder.
The text of the framework for the selection comes for the xml content of these files. Display name shows up for the selection. If we just change Xbox 360 to Xbox 360 2 , that is what is shown on the dialog for selection.
This is how the framework selection is shown after the change:
And that is exactly how this is shown in the Library Tab of Portable Class Library project.
Now on Additional Frameworks
After the above discussion, we have found out that the frameworks available for selection are picked up from the xml files from the SupportedFrameworks folder. So in order to target to an additional framework, we need to find out if the new target framework has features that are provided by any of the available profiles. And also the way the profiles are provided.

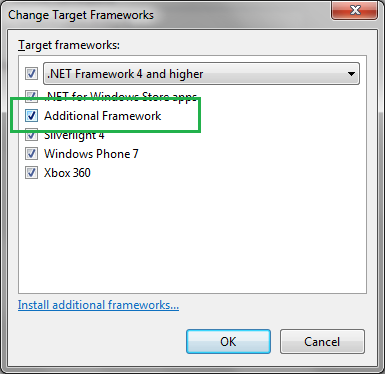

This is how the framework is available in the selection dialog:
If there are more than one versions of your framework in different profiles then they are displayed in a selection control. Let's copy a new profile [Profile 2] and a new framework file Additional Framework 2.0 with the following contents.
This should result in displaying the framework selection dialog as follows:
